Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection

Series : UBLG-80D

Features : Measuring solids and most liquids

Mounting Type : -

Description : Aluminum/stainless steel, 80G Radar level gauge

Manufacturing Date Code : 2024

Model Number : UBLG-80D

Type : Liquid Level Sensor, Radar level gauge

Place of Origin : Beijing, China

Brand Name : UNIVO

Usage : Level measurement

Theory : -

Output : 4~20mA/ RS485 Mod bus

Range : 0.3m~150m

Price : $505.00/sets 1-5 sets

Contact Now

Product Description
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Solid measurement: powder, particles, blocks (plastic particles with low dielectric constant) Liquid measurement: liquid level of reaction kettle, big steam, foam products, crystallization products, ultra-high temperature products, ultra-high pressure products, sanitary products
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Process Connection
Flange/material 304 stainless steel, PP
Antenna profile
PTFE
Shell
Cast aluminum/stainless steel/plastic ABS
Sealing between shell and shell cover
silicon rubber
Shell Window
polycarbonate
Grounding terminal
Stainless steel
Power supply voltage
Four wire system
(12-24) VDC
Power consumption max80mADC24V/2W
Allow ripple<100Hz Us
(100-100K) Hz Uss<10mV
Dual chamber housing
(198-242) V AC four wire system
110V AC four wire system
Cable parameters
Cable entry/plug
1 M 20xl.5 cable entry
1 blind plug M20xl. 5
Wiring terminals
Wire cross-section 2.5mm ²
Output parameters
output signal
(4-20) mA/RS 485 Modbus
resolving power
1mm
Fault signal
The current output remains unchanged; 20. 5mA; 22mA; 3.9mA
Integral time
(0-20) s, adjustable
Blind spot
0.08m/0.2m/0.3m
Maximum measurement distance
150 meters
Measurement interval
Approximately 1 second (depending on parameter settings)
Adjust time
Approximately 1 second (depending on parameter settings)
Working storage and transportation temperature
(-40~80) ℃
relative humidity
˂ 95%
pressure
Max. 2.5MPa
Seismic resistance
Mechanical vibration 10m/s ² , (10-150) Hz
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection

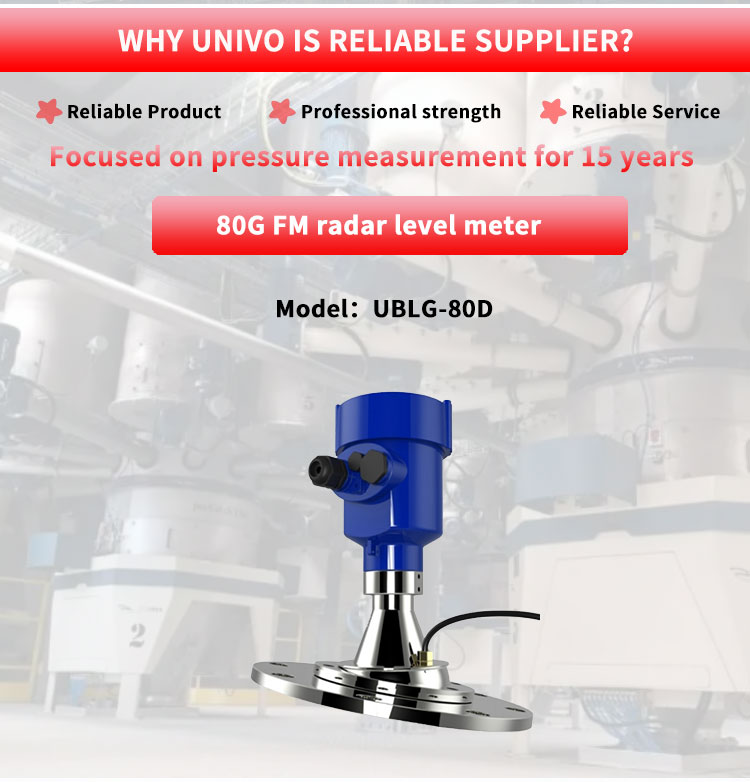

Why Choose Us
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection

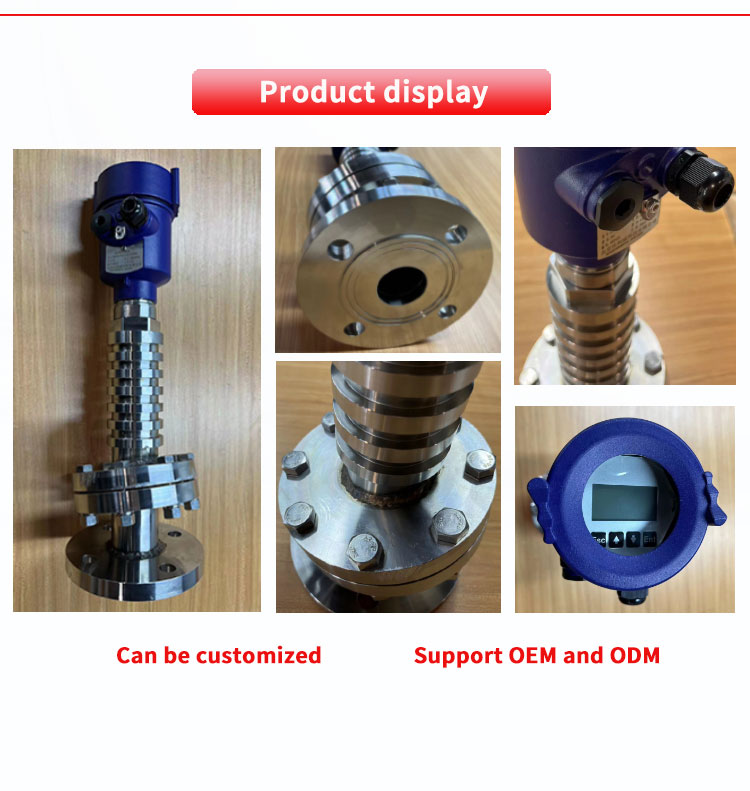

Details Images
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Company Profile
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
Product packaging
Mounting Type UNIVO UBLG-80D 80G Radar level gauge for precise solid liquid detection
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.

Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
